DEHUMIDIFICATION SYSTEM OVERVIEW
- Brattleboro is a 1.3 MGD – 1,500 T/year plant
- The Shincci 4800 evaporates 4,800 kilograms of water in a 24 hour period
- It takes 1 kWh to evaporate 3.5 kilograms of water
- The 4800 is 7.5 ft. wide, 8.0 feet high and 21.36 ft. long
- There are two smaller units that ship fully assembled, the 1200 and the 2400
- This modular unit is also available in a 7200, which is 30.22 ft. long
- Starting with the 9600, the machine steps up in size – 10.2 ft. wide and 10.5 feet high (26 to 111 ft. long)
- Remember the fans when estimating required height
BRATTLEBORO STATS
- Using 75% less polymer@ 7 to 10% dosage
- Liquid feed is 29 gallons per minute
- 23% solids dropping into the dryer
- Belt is moving 60 seconds – then, rests 180 seconds
- Roughly 5 rpm at 180 degrees F
- Currently running 8 hours/day, producing 1 Super Sack/day at roughly 900 pounds
- Looking to break up the finished good product a little to increase density
- Product is in the dryer roughly 1.5 hours

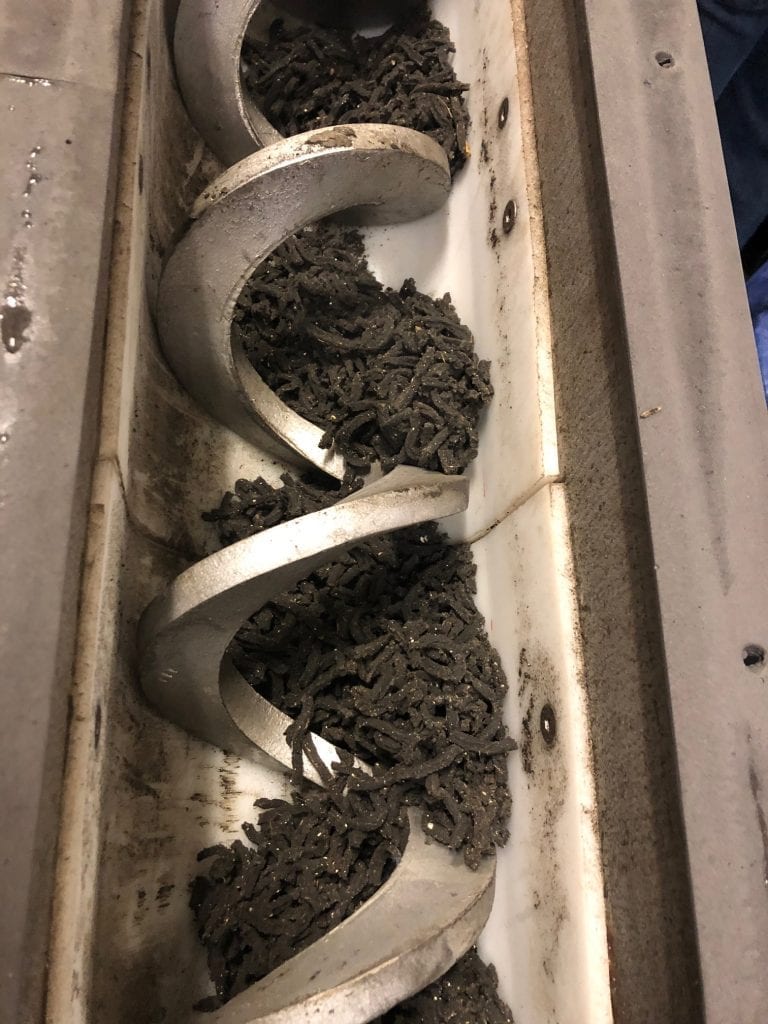

- Finished product is 90% to 92% solids

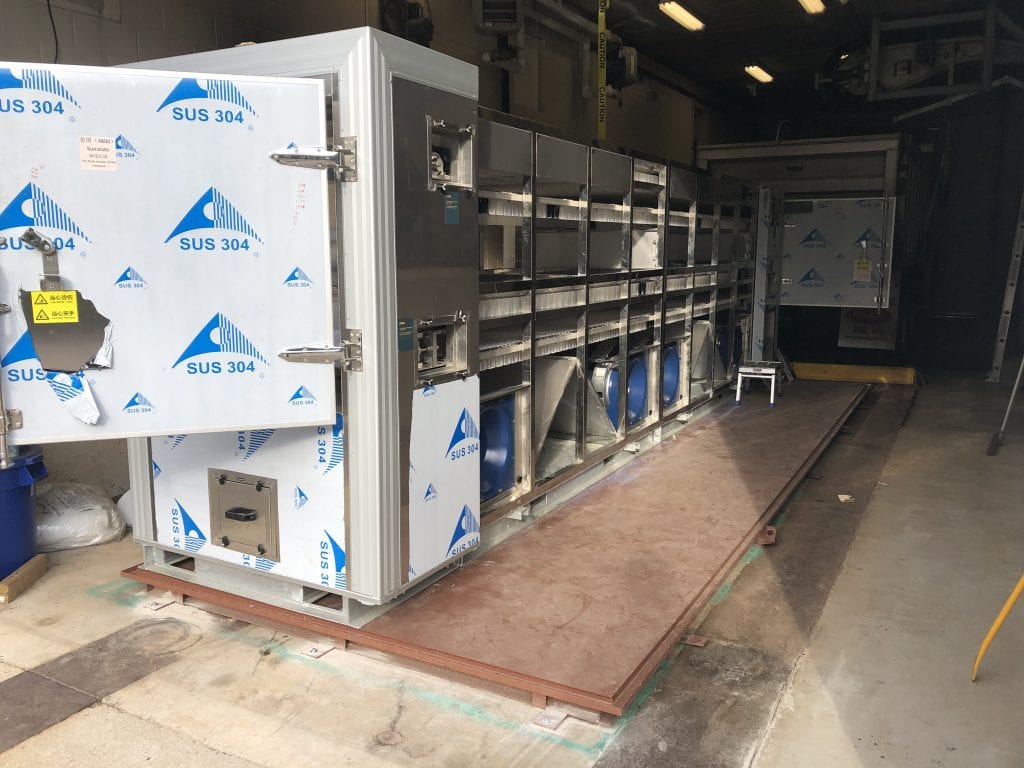

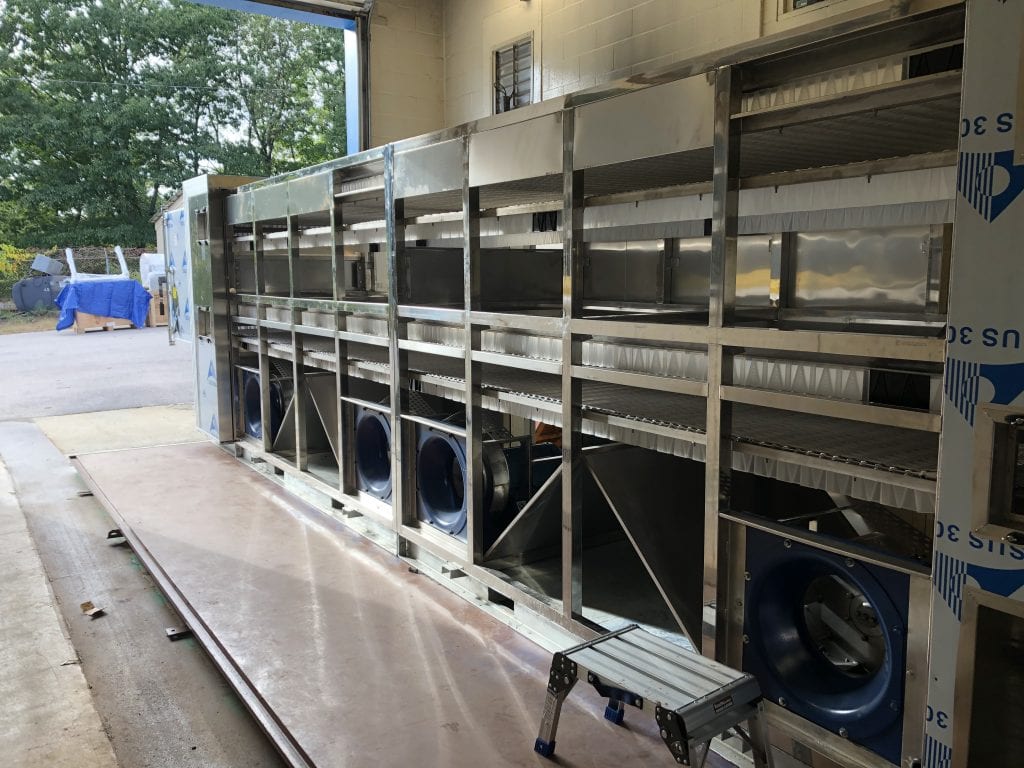

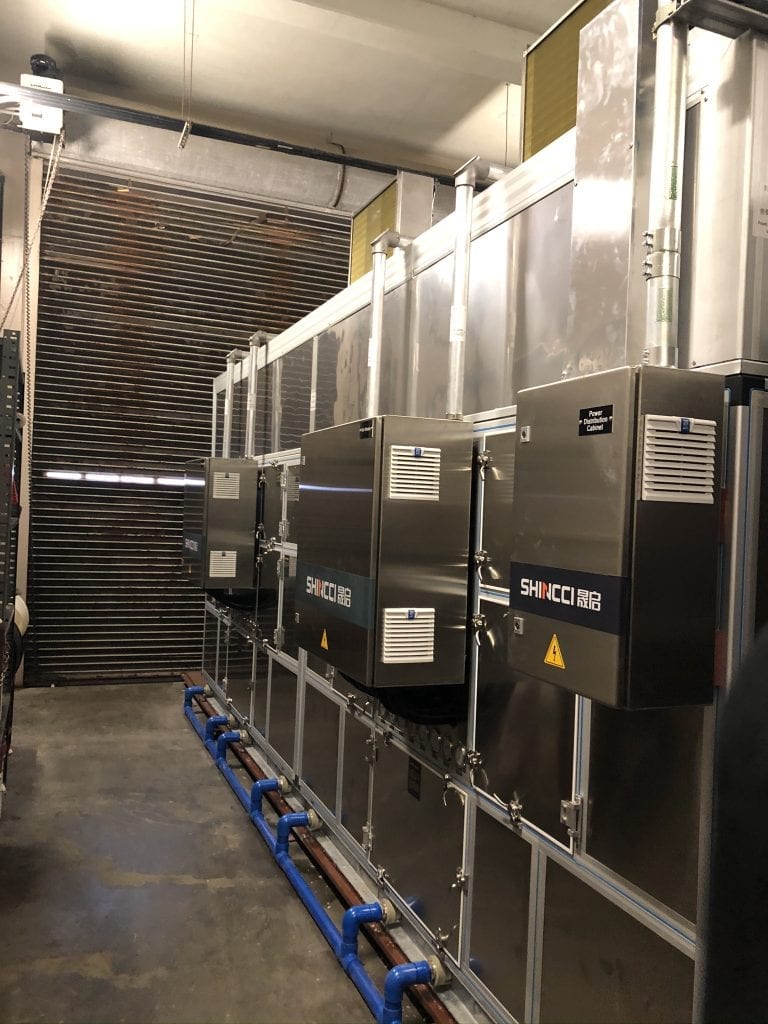

The first ever Shincci-USA Dryer is installed and fully operational in Brattleboro, VT.
